成都厂家供应普利卡管 lv-5 可挠性普利卡管

详情描述：

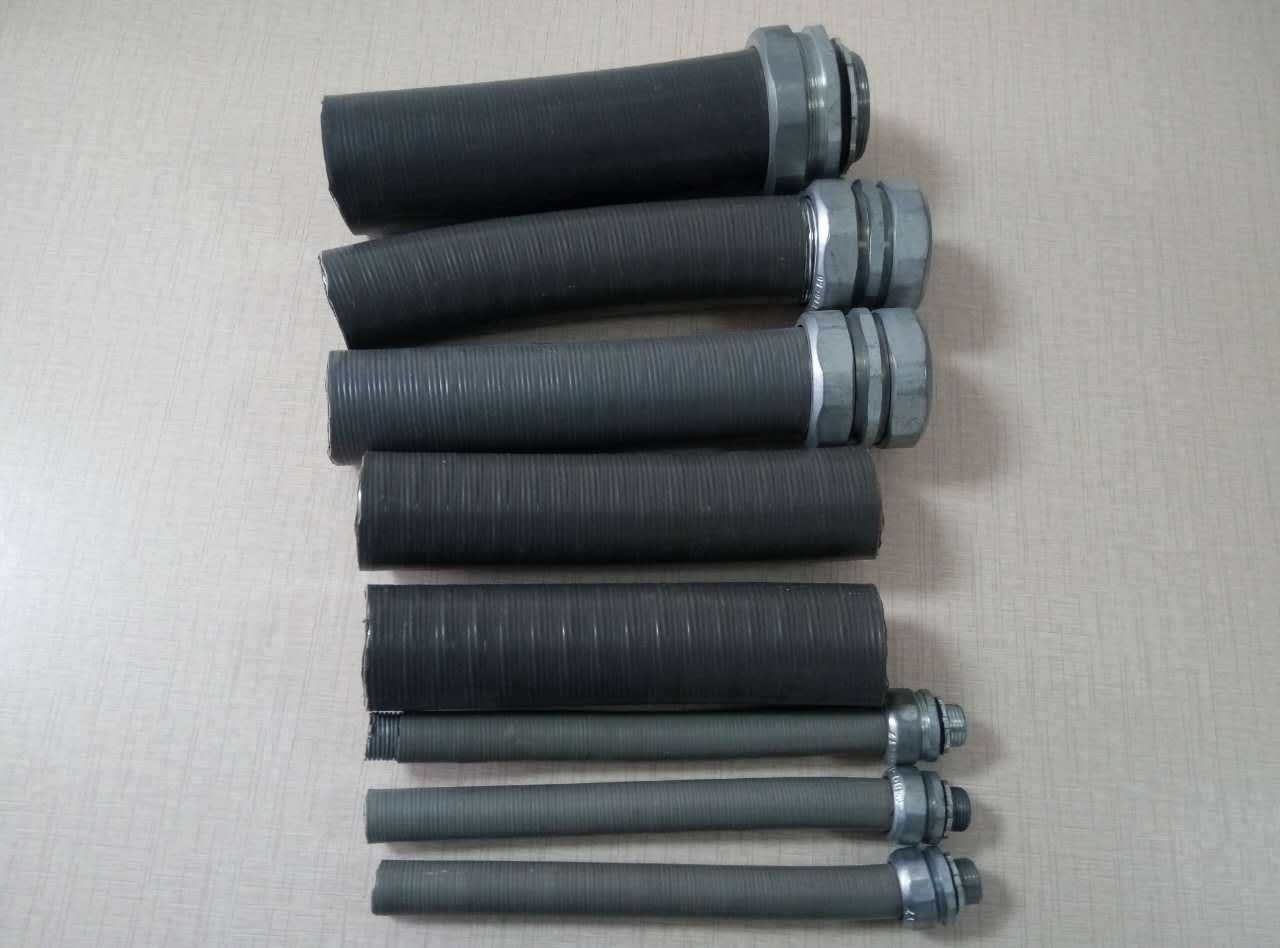

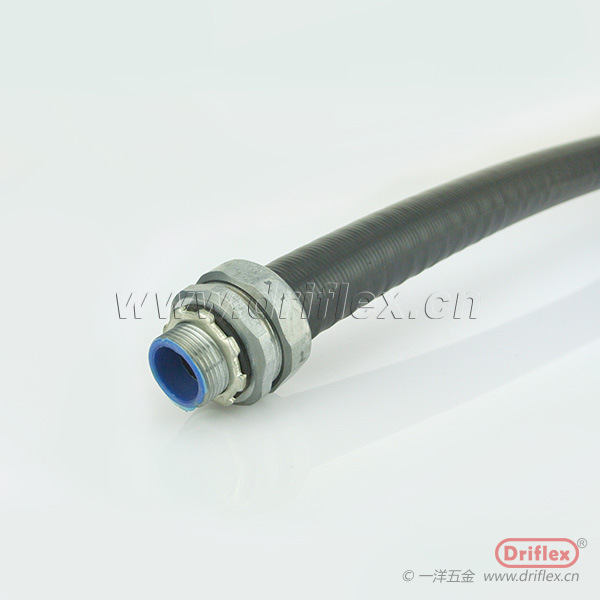

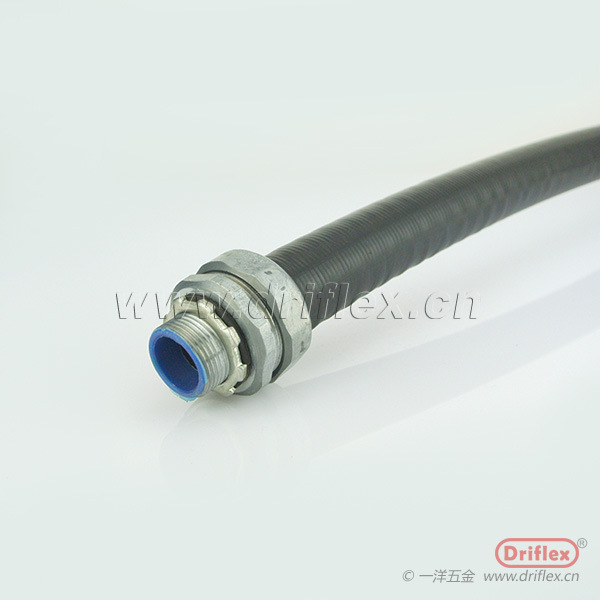

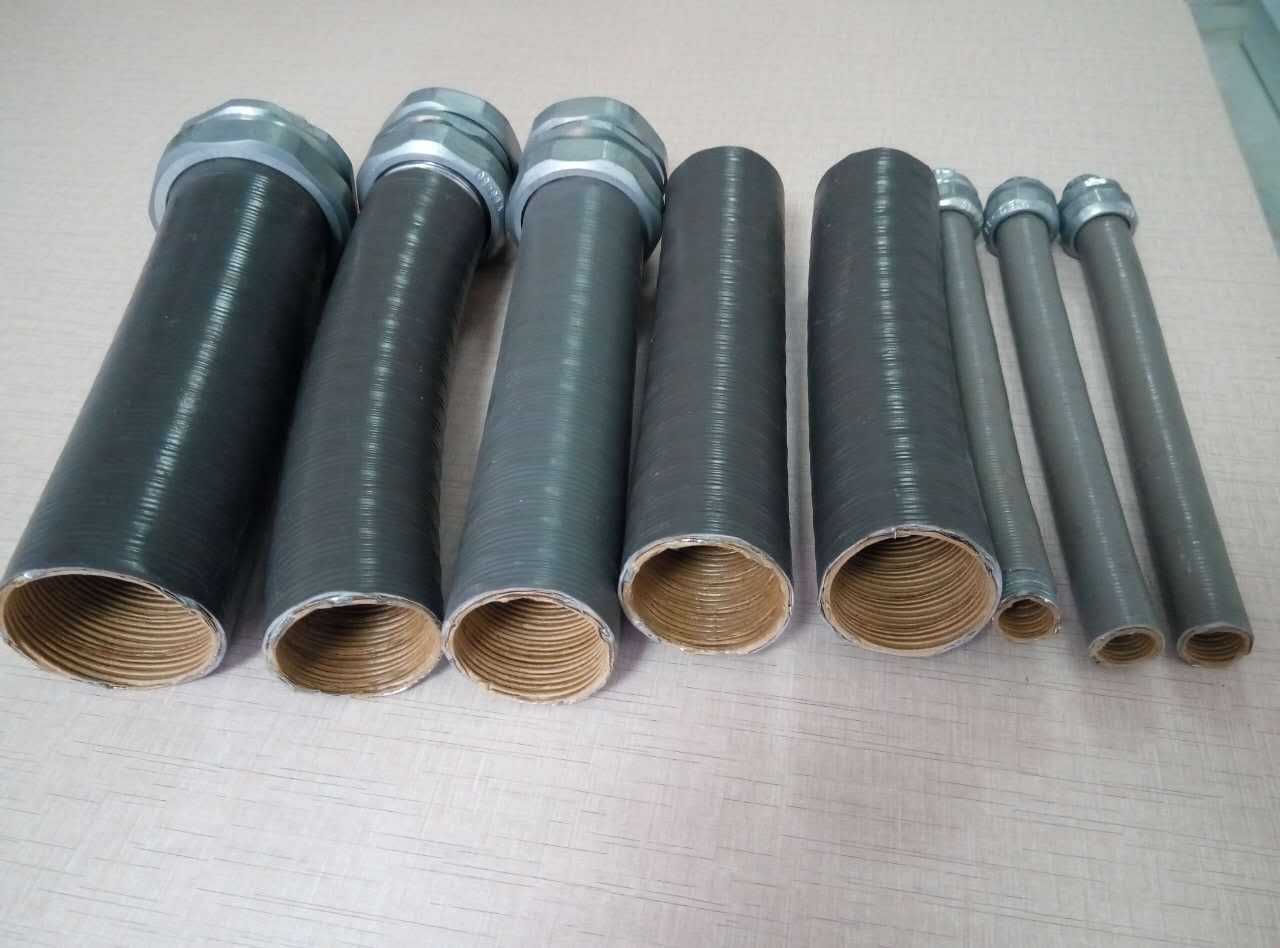

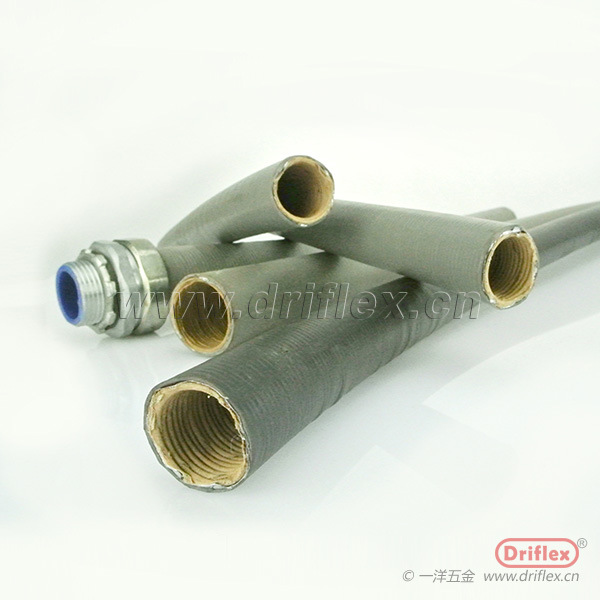

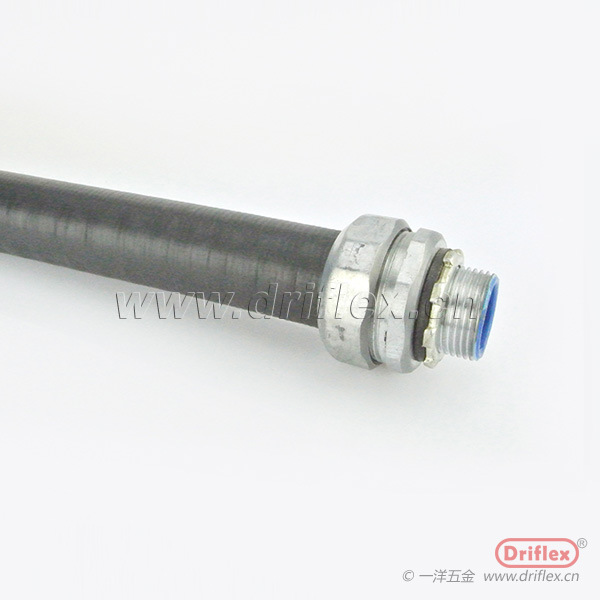

LV-5防水型普利卡软管
LV-5 Liquid Tight Plica Tube
材  质：
里层耐水电工纸 中间层钢带 PVC.
Materials:
Electrical paper   steel strip   PVC coated
防护等级：
IP67
Protection Rating:
IP67
耐温范围：
-40℃ -  105℃
Temperature Range:
-40℃ -  105℃
型号
内径(mm)
外径(mm)
外径公差(mm)
PVC 厚度
包装（m/coil)
钢管内径对应型号
电线管对应型号
PVC Thickness
Steel pipe I.D. Size
Conduit Size
Part No.
I.D.
O.D.
O.D. Tolerance
mm
Packing
mm
inch
mm
inch
LV-5-12#
11.4
17.7
?0.2
0.6
50
8.0
1/4"
13.0
1/2"
LV-5-15#
14.1
20.6
?0.2
0.6
50
10.0
3/8"
16.0
5/8"
LV-5-17#
16.6
23.1
?0.2
0.6
50
15.0
1/2"
19.0
3/4"
LV-5-24#
23.8
30.4
?0.2
0.6
25
20.0
3/4"
25.0
1"
LV-5-30#
29.3
36.5
?0.2
0.6
25
25.0
1"
32.0
1-1/4"
LV-5-38#
37.1
44.9
?0.4
0.6
25
32.0
1-1/4"
38.0
1-1/2"
LV-5-50#
49.1
56.9
?0.4
0.8
25
40.0
1-1/2"
51.0
2"
LV-5-63#
62.6
71.5
?0.6
0.8
10
50.0
2"
64.0
2-1/2"
LV-5-76#
76.0
85.3
?0.6
0.8
10
70.0
2-1/2"
76.0
3"
LV-5-83#
81.0
90.9
?0.8
1.0
10
80.0
3"
LV-5-101#
100.2
110.1
?0.8
1.0
5
100.0
4"
LV-5-130#
126.4
136.0
?1.0
1.5
3
125.0
5"
